Plastic Polymer Materials Thermal Expansion Tester with -30℃ to 30℃ Range and 1-30℃/minute Heating Rate Dilatometer

Plastic Polymer Materials Thermal Expansion Tester with -30℃ to 30℃ Range and 1-30℃/minute Heating Rate Dilatometer
Plastic Polymer Materials Thermal Expansion Tester with -30℃ to 30℃ Range and 1-30℃/minute Heating Rate Dilatometer Plastic Polymer Materials Thermal Expansion Tester with -30℃ to 30℃ Range and 1-30℃/minute Heating Rate Dilatometer Plastic Polymer Materials Thermal Expansion Tester with -30℃ to 30℃ Range and 1-30℃/minute Heating Rate Dilatometer Plastic Polymer Materials Thermal Expansion Tester with -30℃ to 30℃ Range and 1-30℃/minute Heating Rate Dilatometer Plastic Polymer Materials Thermal Expansion Tester with -30℃ to 30℃ Range and 1-30℃/minute Heating Rate Dilatometer Plastic Polymer Materials Thermal Expansion Tester with -30℃ to 30℃ Range and 1-30℃/minute Heating Rate Dilatometer

Büyük resim :  Plastic Polymer Materials Thermal Expansion Tester with -30℃ to 30℃ Range and 1-30℃/minute Heating Rate Dilatometer

Ürün ayrıntıları:
Menşe yeri: Guangdong, Çin
Marka adı: LIYI
Model numarası: Liyi
Ödeme & teslimat koşulları:
Min sipariş miktarı: 1
İletişim

Plastic Polymer Materials Thermal Expansion Tester with -30℃ to 30℃ Range and 1-30℃/minute Heating Rate Dilatometer

Açıklama
Sıcaklık aralığı: -30°C ~ 30°C Dilatometre yönelimi: yatay
Örnek uzunluğu: 50mm(maks.) veya 25mm numune çapı: 6~10mm; yuvarlak veya kare
LVDT yer değiştirme aralığı: 0.1-1um ısıtma oranı: 1 ~ 30°C/dakika, doğruluk ±1°C
Güç kaynağı: 220v, 50Hz Ölçüm aralığı: ± 5 mm ± %0,1
Örnek tutucu: Kuvars Prob çubuğu: Kuvars
Soğutma yöntemi: Harici su banyosu/basınçlı hava Kalibrasyon standartları: Kuvars standart örneği
Veri toplama: Yazıcılı yerleşik bilgisayar Yazılım platformu: Windows 8/7/XP
Isıtma doğruluğu: ± 1 ℃
Vurgulamak:

Temperature Test Range -30℃ ~ 30℃ Thermal Expansion Tester

,

LVDT Displacement Range 0.1-1um Dilatometer

,

Heating Rate 1 ~ 30℃/minute Polymer Testing Equipment

Plastic Polymer Materials Thermal Expansion Tester Testing Dilatometer
The instrument is used to test the linear expansion coefficient of plastic polymer materials within prescribed temperature ranges. This single push rod dilatometer measures length changes (expansion and/or shrinkage) and includes operating software, data acquisition hardware, and calibration standards.
Key Features
  • Measures thermal expansion properties of plastic polymer materials
  • Includes comprehensive data acquisition system
  • Features precise temperature control capabilities
  • Comes with calibration standards for accurate measurements
  • Compatible with Windows operating systems
Technical Specifications
Specification Details
Temperature test range -30℃ ~ 30℃
Sample diameter 6~10 mm; round or square
Sample length 50mm(max) or 25mm
Cooling External water bath/compressed air
Measuring range and error ± 5 mm ± 0.1%
Sample holder and probe rod Quartz
Dilatometer orientation Horizontal
LVDT displacement range 0.1-1um
Heating rate 1 ~ 30℃ /minute, accuracy ±1℃
Calibration standards Quartz standard sample
Temperature control Experimental process controls parameters, including PID parameters and communication methods. Allows arbitrary adjustment, setting, and locking via intelligent instrument. Parameters can be modified by computer.
Data Acquisition Onboard computer with printer, English version software compatible with Windows 8/7/XP
Power supply 220V, 50HZ
Product list Test host, Cold thermostatic bath, Quartz standard sample, Testing software
Product Images

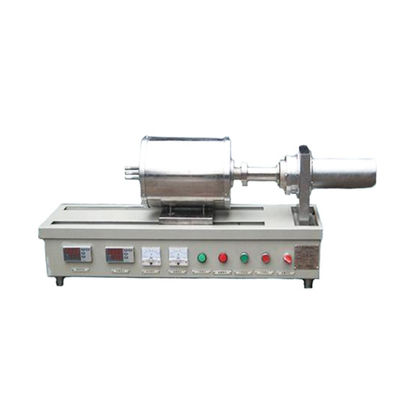

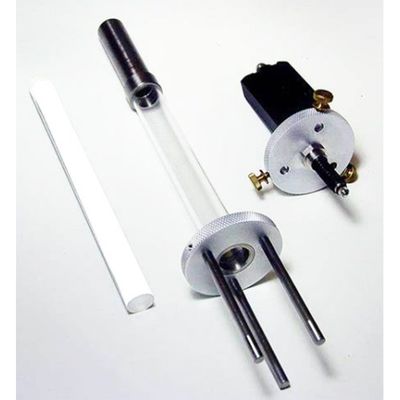

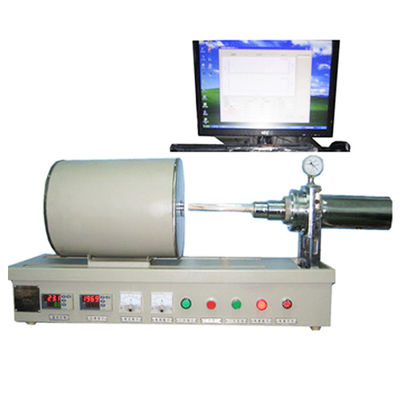

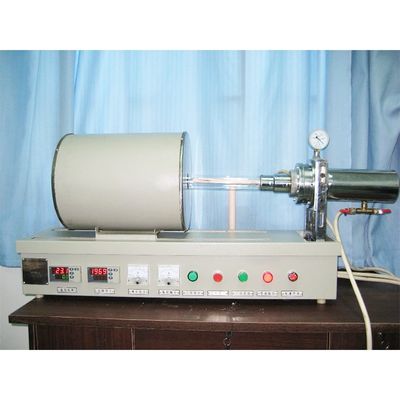

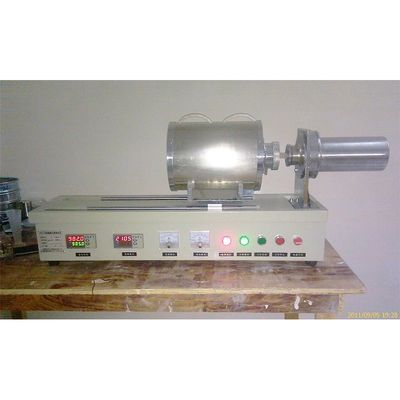

Plastic Polymer Materials Thermal Expansion Tester with -30℃ to 30℃ Range and 1-30℃/minute Heating Rate Dilatometer 0 Plastic Polymer Materials Thermal Expansion Tester with -30℃ to 30℃ Range and 1-30℃/minute Heating Rate Dilatometer 1
Company Profile

Dongguan Liyi Environmental Technology Co., Ltd is a high-technology production-oriented enterprise specializing in developing, manufacturing, and marketing environmental testing equipment. With advanced technology, experienced personnel, and a comprehensive quality management system, we provide efficient professional services and excellent after-sales support.

Our product range includes simulated environmental testers, plastic and rubber testers, and various material testing equipment. Based in Dongguan, Guangdong province (China's manufacturing center), we also maintain an office in Kunshan, Jiangsu province to better serve customers in Eastern China.

We serve customers from over 150 countries and regions, collaborating with dealers worldwide to provide superior service. Our mission is to help customers establish quality testing labs to ensure product excellence.

Committed to continuous development and innovation, we combine international testing standards with customer-specific requirements to set new benchmarks in China's testing industry.

Plastic Polymer Materials Thermal Expansion Tester with -30℃ to 30℃ Range and 1-30℃/minute Heating Rate Dilatometer 2
Frequently Asked Questions
1. Are you Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?
Yes, we are one of China's leading manufacturers of environmental chambers, industrial ovens, universal tensile testers, and other testing equipment. All machines include a 12-month warranty after shipment (extended to 14 months for sea transportation). We provide free maintenance during the warranty period. For technical support, contact us via email or phone - we typically offer solutions within 24-48 hours after problem identification, including remote assistance via video chat when necessary.
2. What's the delivery term?
Standard machines are typically available from stock. For non-stock items, delivery time is 15-20 working days after deposit receipt. We can arrange expedited production for urgent orders.
3. Do you accept customization service? Can I have my logo on the machine?
Yes, we offer both standard and customized machines according to customer requirements. OEM and ODM services are available, including adding your logo to the equipment.
4. How can I install and use the machine?
We provide English operation videos upon order completion. Most machines ship fully assembled - simply connect the power cable to begin operation. When required, we can assist with on-site installation.
Plastic Polymer Materials Thermal Expansion Tester with -30℃ to 30℃ Range and 1-30℃/minute Heating Rate Dilatometer 3
